Introduction

Here's a number that should keep every architect, developer, and city planner awake at night: 75% of the buildings that will exist in 2050 are already built.

This isn't an academic claim - it's a structural reality. Talking about net-zero construction or climate-resilient design addresses only half the challenge. The other half - the massive majority - already has its foundation poured, envelope sealed, systems running. And most of it was built for a climate that no longer exists.

️Climate threats don't arrive in isolation anymore.

Philadelphia summer 2023: power grid fails, 41°C in four hours in low-income housing. Berlin faces a 343% increase in cooling demand by 2080.

California: structures meet code but ignite in wildfire anyway because defensible construction technologies were ignored.

Singapore: drowns under monsoons old drainage systems can't hold.

Gulf Coast: hurricanes punch through "resistant" construction like paper.

The old playbook is dead.

Single-hazard design. Energy efficiency as a primary metric. Reactive retrofits after disasters. Dead, dead, dead.

The new rule is unforgiving:

One building, six threats. One geometry, multiple solutions. ��

Every dollar invested in multi-hazard resilient design returns $6 to $16 in avoided losses, depending on location and threat type. Insurance companies are already pricing it in. Lenders are already requiring it. Markets are already shifting toward it.

What's missing? A coherent strategy for retrofitting 75% of existing building stock and pricing compound resilience into financing mechanisms.

Four Essential Fronts ��

This analysis explores defensive massing across four critical dimensions:

1️Regional Disaster Geometry: How climate specificity shapes defensive design

2️Multi-Hazard Matrices: One courtyard form solving heat, wildfire, wind, and flood

3️Buildings as Watersheds: Urban-scale infrastructure that begins at the building level

4️Retrofit Economics: How defensive retrofits achieve payback within a single disaster event

I. Regional Disaster Geometry: The Climate-Specific Playbook

Climate doesn't treat all cities equally. Neither should defensive massing.

A building optimized for Berlin's heat crisis will fail California wildfire exposure. A flood-resilient Singapore structure needs rethinking for Gulf Coast hurricane forces. Design must become hyperlocal - responsive to the specific constellation of threats a region faces.

Berlin & Northern Europe: The 343% Cooling Crisis ️❌

When Passive House standards conquered Northern Europe, architects celebrated. ✅ Airtight envelopes.

✅ R-60 insulation.

✅ Net-zero heating demand.

Problem solved, they said.

Then summer arrived, and the problem inverted completely.

Germany now projects a 343% increase in cooling demand by 2080 - rising from 4.5 kWh/m² to 19.9 kWh/m² annually. Ultra-efficient airtight buildings designed to prevent heat loss become furnaces when they can't dump the heat they accumulate. During the 2022 UK heat wave, super-insulated homes hit 35°C indoors with just 28°C outside. The Passivhaus Institute - the global authority - now admits summer overheating is a critical flaw requiring protocol amendments.

The solution isn't bigger air conditioners. It's defensive geometry.

�� External shading blocks solar radiation before it penetrates the envelope.

Studies show 74% cooling load reduction when external blinds or brise-soleil systems intercept sun before glazing contact. Combined with natural ventilation achieving 59% cooling reduction, external shade becomes non-negotiable for northern European adaptive design.

But effective shading demands specificity:

● East-west building orientations minimize solar exposure on primary facades

● South-facing overhangs sized for latitude - deeper in winter, shallower in summer

● Automated louver systems respond to solar intensity in real time

● Reduced window-to-wall ratios (22-35%, versus 40%+ in older standards)

● Thermal mass in concrete or masonry stores daytime heat for nocturnal release

This suite of interventions reduces peak indoor temperatures by over 5°C without mechanical cooling. Crucially, it works passively - no reliance on grid power, which is precisely when you need it most.

California WUI: When Geometry Becomes Survival ����

The Wildland-Urban Interface teaches a different geometry lesson. Here, the enemy isn't temperature. It's ember.

The 2018 Paradise fire and subsequent analysis revealed a stark correlation:

Defensible space + home hardening = survival from 25% baseline to 48%. Near doubling.

�� Zone 0 clearance (removing vegetation within 1.5 meters of structures) reduces loss by 17% alone. Combined with hardening (fire-rated siding, enclosed eaves, ember-resistant vents), survival jumps to 48%.

But geometry is equally critical.

️Hip roofs reduce wind uplift by 30-40% compared to gable roofs, limiting ember penetration. ✨ Aerodynamic edge devices - rounded parapets and vortex-suppressing caps - reduce uplift pressures by 75% at roof corners.

This is equivalent to reducing effective wind speed by 3-4 hurricane categories.

Why does this matter? Embers exploit openings. A roof design that minimizes uplift and corner vortices simply presents fewer opportunities for ignition. The aerodynamics of survival are measurable and proven.

California's evolving WUI codes now mandate:

✅ Hip roofs with 30:12 or lower slope

✅ Rounded or chamfered building corners

✅ Aerodynamic edge devices on parapets

✅ Non-combustible cladding across entire first 1.5 meters

✅ Ember-resistant vents (tested to ASTM E2886)

✅ Enclosed eaves and soffits

✅ Class A fire-rated roofing (tested full assembly, not just material)

However, structure spacing is the most influential factor in fire spread. Hardened individual buildings fail against dense neighborhoods where fire jumps building-to-building. This reveals a policy opportunity: zoning that mandates setbacks, prohibits dense infill in highest-risk zones, and requires defensible space corridors.

Subtropical Asia: The Sponge City Model ����

China's 30 pilot sponge cities target 70% onsite stormwater absorption or reuse by 2030. The strategy: treat landscapes as living filtration and storage systems rather than channeling precipitation toward overwhelmed drainage networks.

�� Permeable pavements deliver 1-40% total runoff reduction and 7-43% peak flow reduction, depending on material type. Permeable concrete performs best for flood mitigation; permeable interlocking concrete pavers resist clogging most effectively.

⚠️ However, clogging reduces effectiveness by 62-92% for total runoff without rigorous maintenance. Hard truth about distributed infrastructure: performance depends on upkeep.

Singapore's research shows extensive green roofs with 12 cm substrate provide 39% greater rainfall retention and 64% peak discharge reduction compared to conventional roofs. This translates to 234 mm additional retention and 34-minute delayed time-to-peak - enough to prevent downstream flooding in many mid-intensity storms.

Courtyard geometry integrates these principles at building scale. In subtropical Asia, courtyards have long provided thermal regulation through shade stacking and air circulation. Applied to stormwater, they become bio-retention cells where roof drainage and site runoff collect, infiltrate, and evapotranspiration. Sloped courtyard surfaces drain to planted retention areas. The central void becomes functional landscape - usable during dry periods, active stormwater infrastructure during rain.

Singapore's Building and Construction Authority Green Mark standards now mandate such integration. First-floor void spaces allow flood conveyance during extreme events while providing shaded public space under normal conditions - "amphibious architecture" that maintains function across wet-dry cycles.

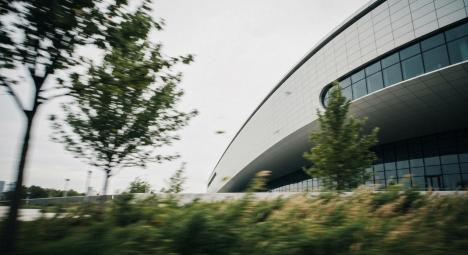

The emerging template for subtropical flood zones:

�� Permeable ground planes with 30 cm maintenance access

�� Extensive green roofs (12+ cm substrate) on low-rise elements

�� Bioretention cells integrated into podium landscapes (30-60% thermal gain reduction bonus)

�� First-floor void spaces elevated above 100-year flood projections

�� Facade-integrated drainage directing runoff to planted swales

This integrated approach yields dual benefits:

�� Shenzhen: 26 kt CO₂e/year GHG reduction transitioning from non-permeable to permeable pavements citywide.

�� Chongqing: 196 Mt/year water conservation from the same transition. Gulf Coast: The Aerodynamic Imperative ️��

Miami-Dade and Gulf Coast building codes mandate hip roof configurations and rounded building corners to minimize wind loads during 150+ mph sustained hurricanes. CFD analysis reveals aerodynamic designs reduce wind force by 30% through vortex disruption and pressure differential management.

�� Hip roofs distribute wind loads across four sloped planes rather than concentrating pressure on two gable ends. This prevents the end-wall blowout failure common in gable structures.

�� Circular or aerodynamic building forms - domes, curved walls, tapered surfaces - deflect gusts more efficiently than orthogonal geometries. Deltec's circular homes survive Category 4-5 storms with minimal damage by eliminating sharp corners where conical vortices concentrate maximum suction.

�� Aerodynamic roof edge devices represent the most dramatic

intervention. Testing at Florida International University's Wall of Wind facility demonstrates:

- 45% reduction in corner roof peak pressure coefficients

- 40% reduction in area-averaged peak pressure using perforated parapets

Full-scale systems achieve 75% uplift pressure reduction in roof corner areas - meaning designs rated for Category 2 hurricanes perform at Category 5 levels when equipped with aerodynamic edges.

⬆️ Elevated construction for flood-storm surge combination threats shows operational continuity during inundation when first-floor elevations exceed Base Flood Elevation plus freeboard. FEMA analysis indicates building 1 foot above 100-year flood elevation adds only $90 million annual construction cost while saving $550 million - a 6:1 benefit-cost ratio.

II. One Geometry, Six Threats: The Multi-Hazard Matrix

Single-hazard optimization creates vulnerability to excluded threats.

Hurricane-resistant sealed envelopes trap heat during power outages. Wildfire-hardened structures fail in earthquakes. Flood-elevated platforms intensify wind exposure.

Multi-hazard defensive massing solves compound threats through geometric strategies addressing multiple disaster modes simultaneously.

Courtyard Geometry: The Universal Defense ️

Courtyard architecture - prevalent in Middle Eastern, Mediterranean, and Chinese vernacular - demonstrates multi-threat resilience through spatial configuration. Contemporary CFD analysis validates traditional intuition while quantifying benefits precisely.

Thermal Performance: 30-60% thermal gain reduction ️

Courtyards achieve this through shadow stacking and air circulation. The enclosed void creates microclimate control - courtyard air heats during day, rises through stack effect, drawing cooler air from surrounding spaces. Night sky radiation from courtyard surfaces provides passive cooling.

Optimal proportions with 0° courtyard orientation yield best ventilation. Height-to-width ratio matters: H/W of 1 demonstrates peak air temperature differences of 1.54°C compared to deeper canyons.

Wildfire Defense: Ember barriers ��➡️❌

Courtyard voids function as ember barriers. During wildfire events, the central open space prevents direct flame contact between perimeter structures while disrupting convective airflow that spreads fire. Non-combustible courtyard surfaces (stone, concrete, water features) provide defensible space integrated into architectural form rather than requiring extensive lot clearance.

Wind Load Distribution ️✨

Courtyard configuration reduces peak wind pressures through geometry. The enclosed void dissipates wind energy that would otherwise concentrate on single building faces.

Rainwater Harvesting ��

Courtyard geometry naturally channels precipitation to central collection point. Sloped surfaces drain to bio-retention cells or cisterns, providing stormwater management integrated into daily-use space. Combined with permeable paving and planted retention areas, courtyard-scale runoff capture achieves 40-80% volume reduction.

Seismic Considerations ��

Courtyard plans create shorter structural spans and more regular building masses compared to L-shaped or fragmented footprints. This regularity reduces torsional response during earthquakes and simplifies load path design.

Courtyard as Daily Asset ��

Unlike defensible-only infrastructure, courtyards provide continuous social and functional value as gathering spaces, outdoor work zones, and community connectors.

Permeable-Elevated Hybrid: Solving Flood-Heat-Wind Compound ����️

Combining permeable ground planes with elevated primary structure solves flood-heat-wind compound threats while maintaining site permeability. New Orleans post-Katrina reconstruction, Venice MOSE integration, and Jakarta's amphibious housing demonstrate this typology successfully.

✅ Structural Configuration: Elevated slabs on pilotis raise living spaces above projected flood elevations while maintaining ground-level permeability. The void zone beneath structure allows flood conveyance during inundation without impeding flow or creating hydrostatic pressure against walls.

�� Thermal Mass Integration: Elevated concrete slabs function as thermal mass despite separation from ground. Unlike earth-coupled slabs that wick heat away, elevated slabs retain absorbed solar gains for nocturnal radiant heating.

�� Flood Performance: Elevated design maintains operational continuity during inundation events that disable ground-level structures.

�� Economic Analysis: NIBS analysis indicates elevated construction 1 foot above BFE costs $90M annually but saves $550M, yielding 6:1 benefit-cost ratio. Stakeholder benefits distribute as:

- 36% property value preservation

- 24% casualty and PTSD reduction

- 22% additional living expenses and business interruption avoidance

- 11% indirect business interruption reduction

- 7% insurance savings

⚠️ Limitations & Trade-offs: Elevated platforms increase wind exposure compared to grade-coupled structures. Integration of lattice or permeable screening in the void zone can reduce wind loads while maintaining flood conveyance capacity.

Rocking Masonry: Seismic-Wind Synergy ��⚖️

Base-isolated rocking systems cut earthquake losses and boost wind resilience—a two-for-one synergy. University of Canterbury proved rocking masonry walls can slash recovery time from 537 to 400 days, saving $6.85M.

�� Rocking foundations dissipate seismic energy by controlled movement, surviving 6% drift without collapse.

�� They also reduce wind impacts, dampening peak accelerations from hurricanes. �� Retrofits deliver up to $16 saved per $1 spent; LA programs let owners recoup costs via rent increases.

Adaptive Facades: Smart Multi-Threat Response ��

Phase change materials (PCMs) embedded in facades activate at specific temperatures (typically 23°C), absorbing latent heat during phase transition. This thermal buffering reduces daily temperature fluctuations and indoor temperature peaks. PCMs integrated into double-skin facades reduce energy load by 20% during day and provide 6.6 kWh/m² thermal gains at night.

�� Kinetic facades adjust to real-time threat conditions:

- External louvers respond to solar angle and intensity

- Automated ventilation dampers close during wildfire events when air quality sensors detect smoke

- Hurricane shutters deploy when wind speed thresholds trigger

�� Aerodynamic elements integrated into facade geometry reduce wind loads passively by 25-65% at critical locations:

- 65% at gable-end corners

- 60% near roof ridges

- 45% at soffits

- 35% at wall corners

- 25% at eaves

Multi-Hazard Cost Premium vs. Single-Event Savings ����

Defensive massing incorporating multi-hazard features costs 9-25% more initially than baseline construction. However, NIBS comprehensive analysis quantifies benefit-cost ratios:

�� 12:1 for earthquakes

�� 10:1 for hurricanes

�� 6:1 for floods

Synergies emerge - combined benefits exceed sum of parts:

- Elevated structures reduce both flood and earthquake damage

- Aerodynamic roofs resist both wind and ember penetration

- Courtyard geometry addresses heat, wind, fire, and flood through single parti

III. Buildings as Watersheds: Urban-Scale Defensive Infrastructure

Individual building resilience proves inadequate when surrounding infrastructure fails.

City-scale defensive infrastructure treats buildings as watershed elements - surface, conveyance, storage, and infiltration components of integrated stormwater-thermal management systems.

The Sponge City Transition ����

Copenhagen's Cloudburst Management Plan, initiated after 15 cm rainfall in 2 hours devastated the city on July 2, 2011, demonstrates transition from pipe-based to landscape-integrated flood management. The €2 billion, 20-year strategy prioritizes flood hotspots while creating blue-green recreational infrastructure.

Rather than expanding sewer capacity - expensive and offering zero amenity value - Copenhagen routes surface water through retention roads, bioswales, canal networks, and detention plazas.

�� Building-Scale Translation:

- Green roofs functioning as detention storage - 39% rainfall retention, 64% peak discharge reduction

- Permeable ground planes around building perimeters replacing impervious concrete - Facade-integrated bioswales receiving roof drainage before discharge to municipal systems - Rain gardens in courtyards or setback zones providing infiltration and evapotranspiration

Philadelphia Green Infrastructure demonstrates U.S. implementation, targeting 85% stormwater capture through distributed green infrastructure. Rotterdam Water Plazas provide multi-functional spaces - playgrounds and parks during dry weather, detention basins during storms.

Urban Canyon Cooling: Strategic Geometry ️❄️

Urban canyons - streets bounded by buildings - contribute 2-4°C temperature elevation to urban heat island effect. However, canyon geometry can mitigate or exacerbate heating depending on H/W (height-to-width) ratio, orientation, and materials.

�� H/W Ratio Effects:

- High SVF (sky view factor) canyons cool quickly

- Shallow canyons (H/W < 1) facilitate heat dissipation but provide less shade - Deep canyons (H/W > 2) maximize shade but trap heat overnight

�� Orientation Effects: North-south oriented canyons have floor as most active energy site, with 30% of midday radiant surplus stored in canyon materials. East-west canyons receive different solar exposure patterns.

️ Wind Corridor Design:

- Align major streets with prevailing summer wind direction

- Create gaps in building facades for cross-ventilation

- Vary building heights to prevent uniform wall trapping stagnant air

✨ Material Interventions:

- Reflective surfaces (albedo 0.7+ cool roofing) reduce heat absorption

- Singapore's urban greening mandate achieves measurable temperature reduction through vegetation coverage

- Street trees provide shade while evapotranspiration cools surrounding air

Building orientation for wind corridors alone achieves 18% energy savings, increasing to 40% with shading and thermal mass.

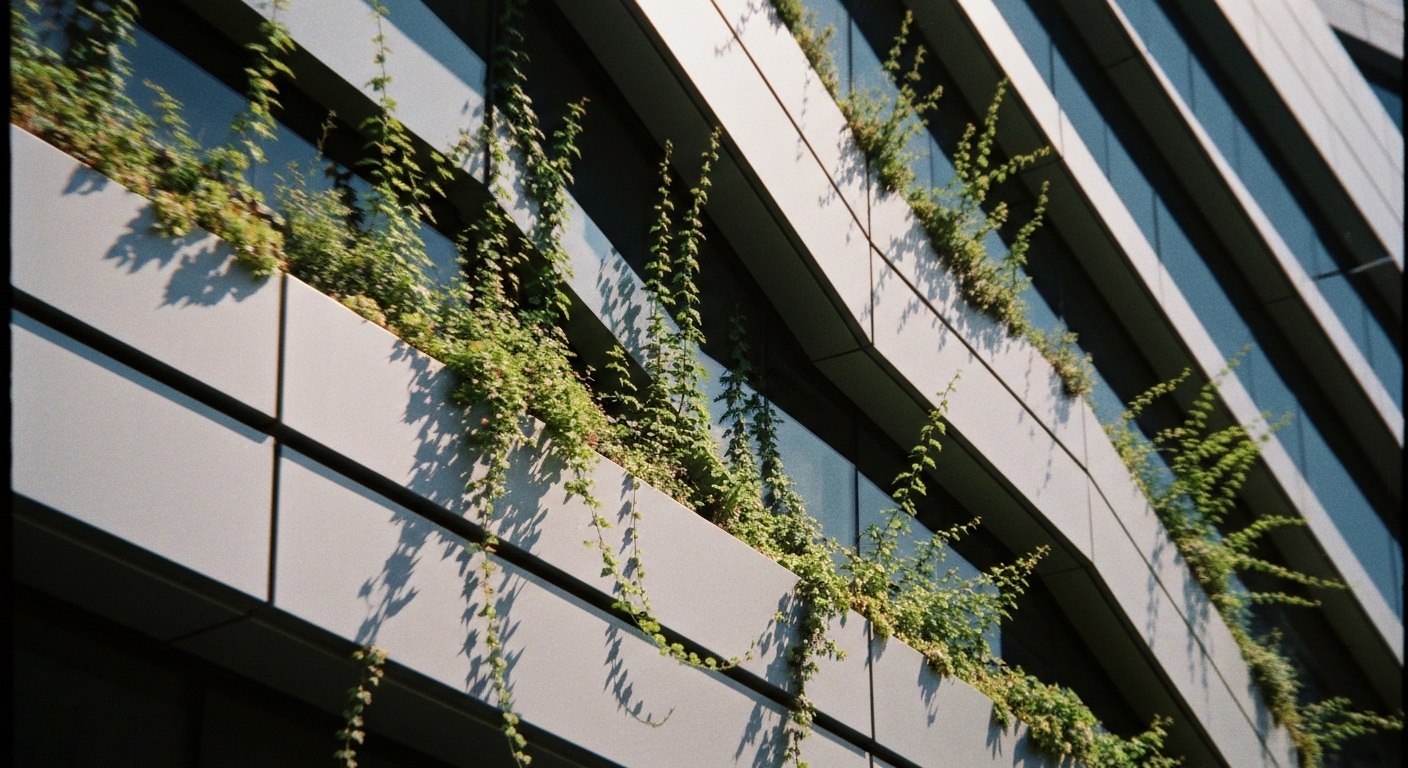

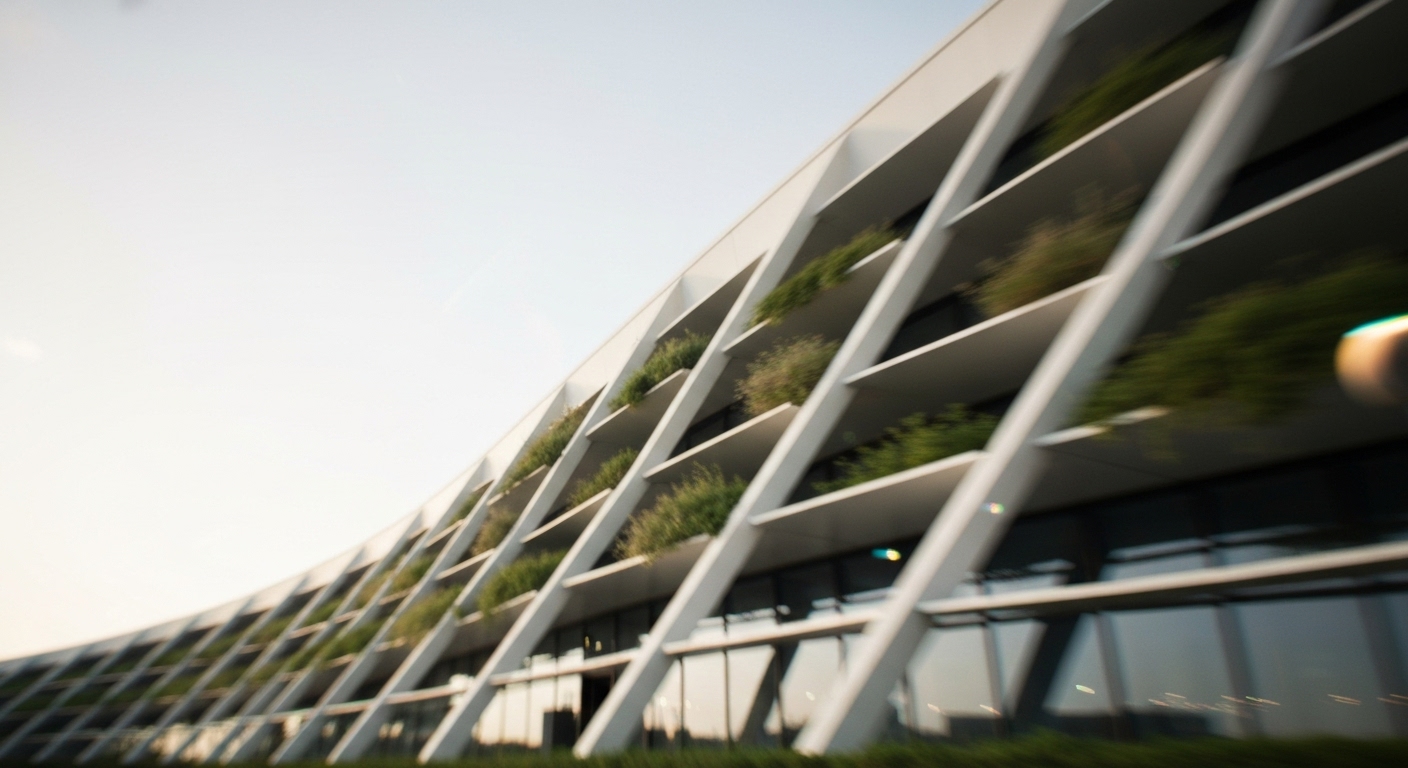

Green Roof Detention for Heat-Flood Compound Resilience ����

Green roofs tackle both heat and flooding—one strategy, many benefits.

In Singapore, they retain an extra 234 mm of rain and delay peak runoff by 34 minutes.

�� They hold water until saturated, then release it, moderating floods.

️ Plants and soil insulate and cool buildings through shading and evaporation.

�� The sweet spot: 12–20 cm deep, balancing weight, cost, and efficacy.

�� Green roofs top the “water chain”—slowing runoff before it hits streets or sewers, but their impact grows when paired with permeable surfaces below.

⚠️ Still, only 20–50% of city land is roof, so their effect is part of a wider network.

Heat Island Reversal: From Concrete to Coherence ����

Urban heat islands rise with dense, impermeable surfaces—smart massing turns the tide: shade, airflow, and cooler surfaces.

�� Orient buildings to catch wind and control sunlight—up to 40% energy savings with thermal mass and shade.

️Courtyards and shaded atriums cut heat gain up to 60%, cooling districts with breezy, shaded microclimates.

�� Tree canopies and cool roofs drop urban temps by 5-7°C; green surfaces and reflective materials fight heat island effect fast.

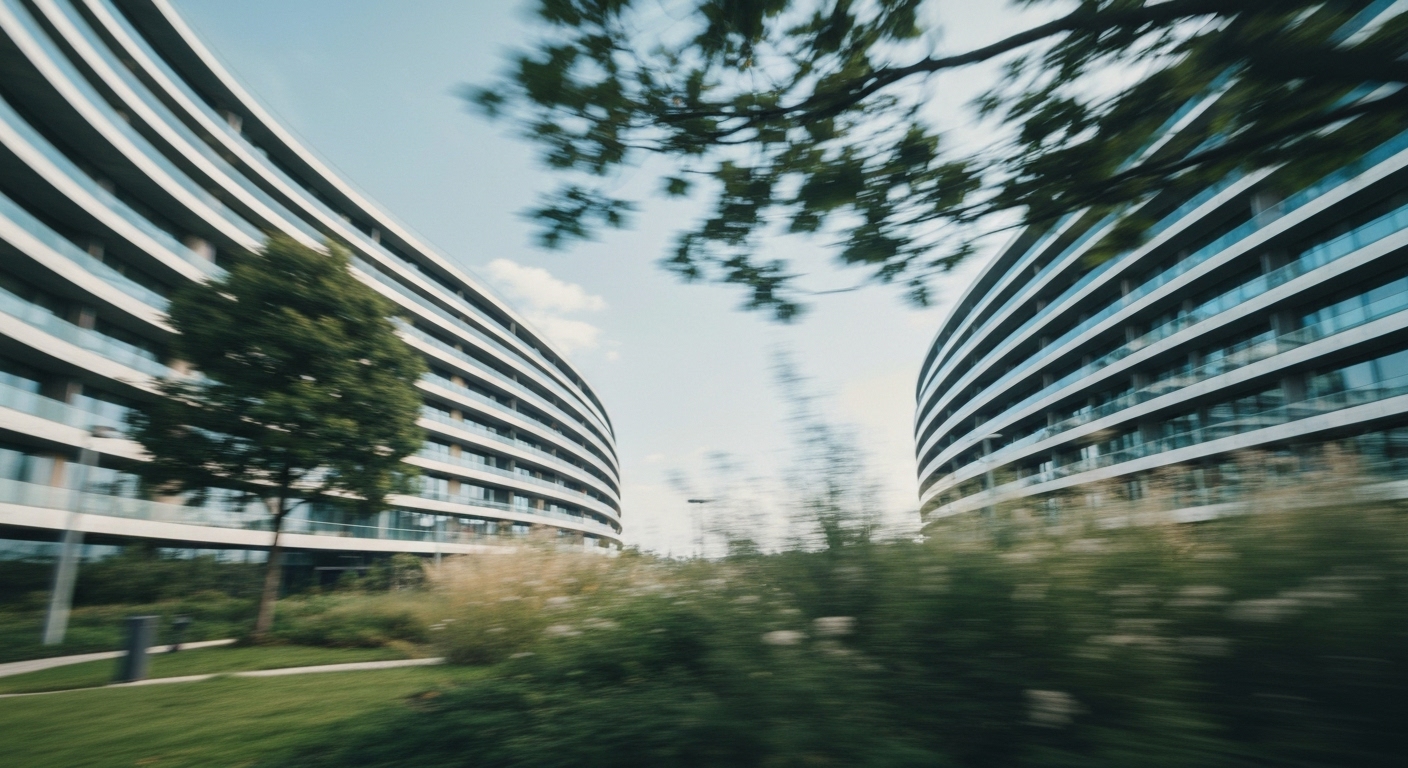

IV. Retrofit Economics & Market Incentives

The 75% Reality: Existing Stock Defines 2050 Outcomes ��⏰

75% of 2050's buildings already exist. Adaptation means retrofit, not new build.

�� Multi-hazard upgrades pay off fast:

- 5x returns for adopting modern codes

- 10x for hurricane resilience

- 12x for earthquake retrofit

- $27B in grants saved $160B since 1995

�� Rapid recovery is the difference:

Earthquake-resistant facades cut downtime from 537 to 400 days and save $6.85M. 40% of businesses never reopen if recovery lags beyond two weeks—defensive massing is survival.

Insurance Market Reactions: Premium Discounts & Parametric Products ����

Insurance is pricing in climate risk—but also rewarding resilience.

�� Defensive massing earns 15–40% insurance discounts:

- Hip roofs/rounded corners: 15–30%

- Elevated flood design: 30%

- Seismic frames: 20–35%

- Wildfire hardening: 25–40%

A 30% discount saves $3K/year on a $10K policy—up to $75K in 25 years.

�� Parametric insurance pays out instantly when disasters hit, no delays—market growing 6% yearly, heading for $34B by 2033.

Real-World Retrofit Economics ️��

Los Angeles Soft-Story Retrofit: Typical case shows retrofit cost of $7,500/unit - 3% cost-to-value ratio. Owners recover up to 50% of retrofit cost through rent increases (maximum $38/month for 10 years).

Seismic Retrofit Portfolio Analysis: For every $1 spent retrofitting soft-story structures, owners expect $7 saved through avoided structural repair, prevented demolition, maintained rental income, avoided liability, and preserved mortgage obligations.

London Metropolitan University Deep Energy Retrofit: IEA-EBC Annex 61 program shows 39% energy savings with payback in just over 10 years, while improving operational resilience.

Market Incentives Accelerating Adoption ��

�� C-PACE Financing: Commercial Property Assessed Clean Energy programs provide loans repaid through property tax assessment.

️ Tax Exclusions and Fee Waivers:

- San Francisco: Earthquake Retrofit Exclusion

- Santa Clara County: Seismic Safety Construction Exclusion

- Berkeley: Transfer Tax Reductions for Seismic Retrofit Work

- Los Angeles County: Various incentives

�� Federal Grant Programs: FEMA Hazard Mitigation Grant Program, EDA grants, HUD Community Development Block Grants fund mitigation projects. $27B invested since 1995 generated $160B savings.

⚡ Utility Rebates: Electric and gas utilities offer rebates for energy efficiency upgrades.

⏩ Expedited Permitting: Cities offer fast-track permitting for retrofit projects meeting defensive standards. Los Angeles soft-story program reduced typical 6-12 month permit timeline to 3-4 months.

Retrofit Prioritization: Risk-Based Triage ��

Not every building requires retrofitting. Risk-based prioritization identifies high-value interventions:

�� High Priority

- Critical facilities (hospitals, schools, emergency services)

- Dense or vulnerable housing in hazard zones

- Structures with known failures (soft-story, unreinforced masonry)

- Historic buildings

�� Medium Priority

- Commercial buildings in risk zones

- Homes with vulnerable residents

- Newer buildings needing partial upgrades

�� Low Priority

- Modern code-compliant structures

- Low-risk locations

- Demos or soon-to-be replaced buildings

Los Angeles Soft-Story Program: Mandatory retrofit of 15,000+ soft-story apartments built before 1978, phased by priority. Over 4,500 buildings completed as of 2020. Targeted approach addresses known vulnerability without requiring citywide retrofit.

The Payback Horizon: Multi-Year Investment Profile ��⏱️

High CapEx is the barrier. But the 5–15-year horizon tells a different story:

�� Years 1-5: Negative cash flow

�� Years 6-10: Approaching breakeven

�� Years 11-15: Full payback

�� Years 15+: Compounding returns

Resilience requires long-term perspective. Short-term holders struggle. Long-term holders win.

Conclusion: Compound Resilience is Infrastructure, Not Luxury

The multi-hazard climate era is already here. Floods, heat, and wildfires overlap, making single-threat design obsolete.

But smart geometry delivers compounding benefits:

✨ One courtyard form tackles heat, wind, fire, flood

✨ One aerodynamic roof resists both embers and hurricanes

✨ One elevated platform defends against floods and wind

�� Every $1 in resilience returns $6–$16

�� Insurers, lenders, and markets already reward it

All that's missing is scaled adoption.

Three moves matter:

1️Design for compound threats, not just local climate

2️Value fast recovery and lifetime savings, not just lower bills

3️Prioritize upgrades for critical and vulnerable assets

The 75% imperative: Most buildings we’ll have in 2050 are already built. Adaptation is our only option—make it infrastructure, get returns early, and create cities that thrive.

It's not if we retrofit for resilience—it's how fast. ��️⚡

Final Thoughts

If you want to talk over your options, click here to schedule a time to chat with our Founder Joe MacDonald see how we can help you revolutionize global project development, management, and delivery.

If you enjoyed The Regenerative Strategist edition, I have a quick favour to ask: 1. Subscribe to The Regenerative Strategist with the button at the top of this post so you don’t miss a single #urbanao post.

2. Share this post with your network on LinkedIn if you think they could benefit from the message using the Share button below.
